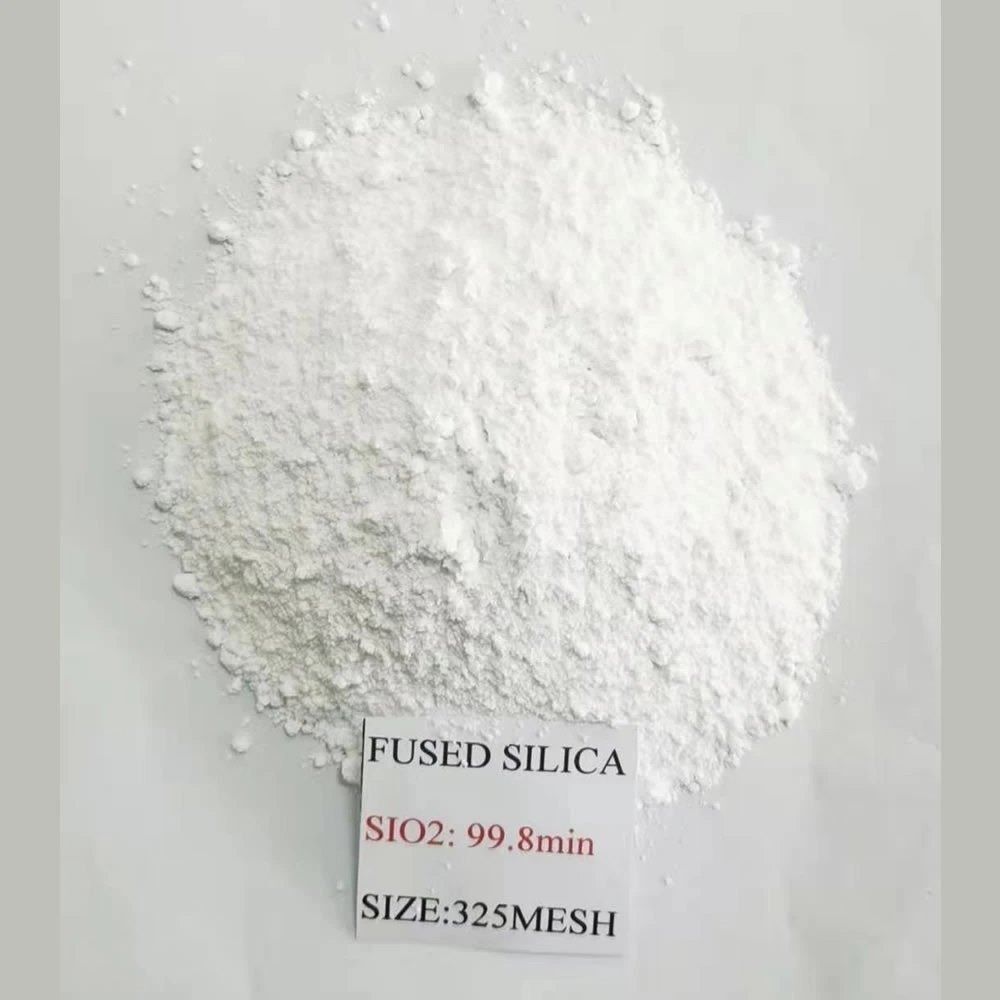

Fused Silica Mesh 325

Fused Silica Mesh 325 Specification

HS Code
25061020

Ph Level
Neutral (7)

Density
2.2 Gram per cubic centimeter(g/cm3)

Poisonous
No

Form
Mesh 325

Shape
Powdered

Purity
>99.9% SiO2

Smell
Odorless

Other Names
Silica Fused, Synthetic Quartz

Solubility
Insoluble in water

Taste
Odorless, tasteless

Molecular Formula
SiO2

Melting Point
1713C

Structural Formula
O=Si=O

Storage
Keep container tightly closed, dry and in a cool place

Refractive Rate
1.4585

Molecular Weight
60.08 g/mol

Boiling point
2230C

Classification
Oxide minerals

Chemical Name
Silicon Dioxide

CAS No
60676-86-0

EINECS No
238-878-4

Grade
High Purity

Standard
ISO 9001

Type
Powder, mesh 325

Usage
Industrial applications

Main Material
Fused Silica (SiO2)

Application
Other

Loss on Ignition
<0.1%

Color
White

Transparency
Translucent to opaque

Mesh Size
325 mesh (44 microns)

Hardness (Mohs)
7

Bulk Density
0.8 - 1.2 g/cm3

Particle Shape
Irregular, angular

Thermal Expansion Coefficient
0.55 x 106 /C

Fused Silica Mesh 325 Trade Information

Minimum Order Quantity
25 Kilograms

Delivery Time
7 Days

About Fused Silica Mesh 325

PRATAP CORPORATION Fused silica is a form of silicon dioxide (SiO2) produced by melting high-purity crystalline silica, like quartz, and forming an amorphous, synthetic glass. Its characterized by very low thermal expansion and high thermal shock resistance, making it suitable for various applications, including optics and high-temperature ceramics

Exceptional Thermal and Chemical Stability

Fused Silica Mesh 325 offers superior resistance to thermal shock, extreme temperatures, and most chemicals due to its ultra-low thermal expansion and high purity. This makes it highly reliable for use in ceramics, refractories, glass manufacturing, and advanced electronics where stability and precision are required under intense conditions.

Versatile Industrial Applications

The product finds critical applications across multiple industriesincluding ceramics, precision castings, laboratory crucibles, refractory linings, and electronics. Its unique combination of high melting point, translucency to opacity, and inertness ensures optimal performance whether used for sophisticated optical components or rugged industrial processing.

High Purity for Advanced Manufacturing

With a purity greater than 99.9% SiO2, Fused Silica Mesh 325 supports advanced technological applications requiring extremely low impurity levels. Its consistent quality, verified by ISO 9001 standards, guarantees reliability and enhances the performance of sensitive products in research, medical, and optical sectors.

FAQs of Fused Silica Mesh 325:

Q: How is Fused Silica Mesh 325 typically used in industrial settings?

A: Fused Silica Mesh 325 is widely used in industrial settings as a raw material for ceramics, refractories, glass, electronics, precision castings, and laboratory crucibles due to its exceptional purity, thermal stability, and resistance to chemical attack.

Q: What benefits does the ultra-low thermal expansion coefficient provide?

A: The ultra-low thermal expansion coefficient (0.55 x 10/C) minimizes deformation or cracking under rapid temperature changes, making Fused Silica Mesh 325 ideal for components exposed to high temperature fluctuations, such as refractory linings and optical devices.

Q: When should Fused Silica Mesh 325 be chosen over other silica products?

A: Fused Silica Mesh 325 should be selected when high purity, minimal thermal expansion, and resistance to extreme conditions are essential, such as in precision casting, electronics, high-temperature ceramics, and laboratory equipment manufacturing.

Q: Where does Fused Silica Mesh 325 provide the greatest performance advantage?

A: Fused Silica Mesh 325 delivers the greatest performance advantage in applications that demand superior thermal stability, chemical inertness, and high purityparticularly in glass production, semiconductor fabrication, and advanced ceramic components.

Q: What is the recommended storage process for this product?

A: For optimal stability and safety, store Fused Silica Mesh 325 in tightly sealed containers, in a cool and dry environment, away from moisture and contaminants, as recommended by ISO 9001 standards.

Q: How does the irregular, angular shape of the particles impact usage?

A: The irregular, angular particle shape enhances mechanical bonding in ceramic and refractory matrices, improving structural integrity and performance in finished products.

Q: What are the key advantages of using Fused Silica Mesh 325 in precision manufacturing?

A: Key advantages include its high purity (>99.9% SiO2), excellent thermal shock resistance, inertness to most chemicals, and consistent fine mesh size, all of which ensure reliability and superior quality in precision manufacturing applications.
